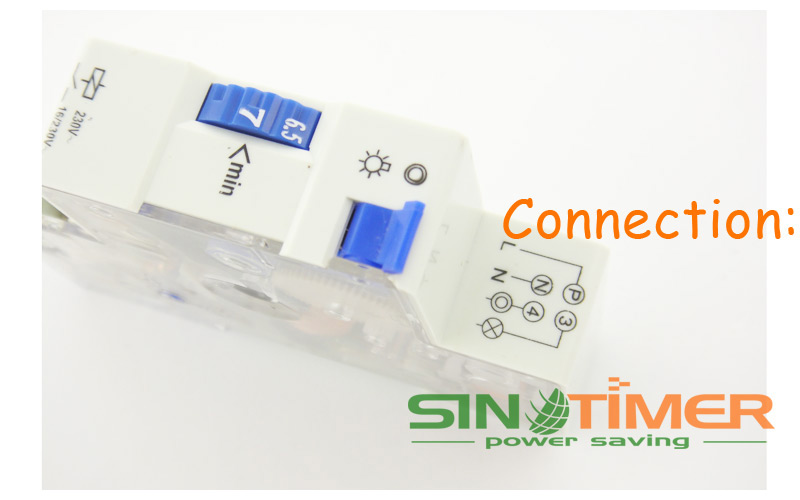

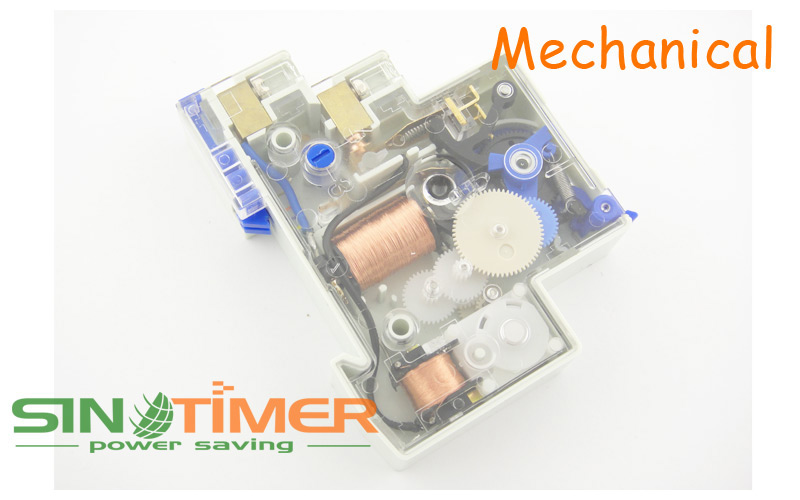

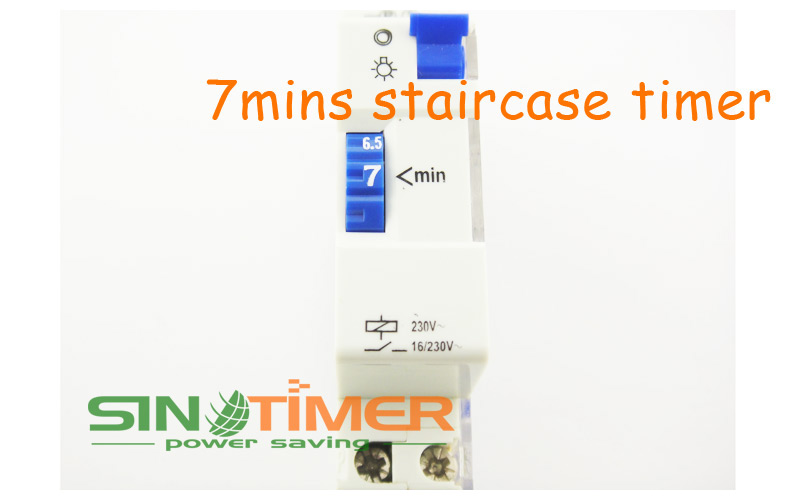

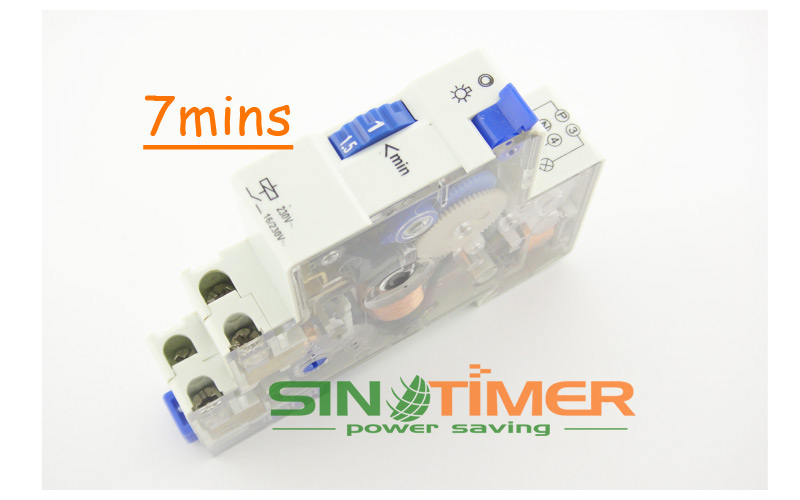

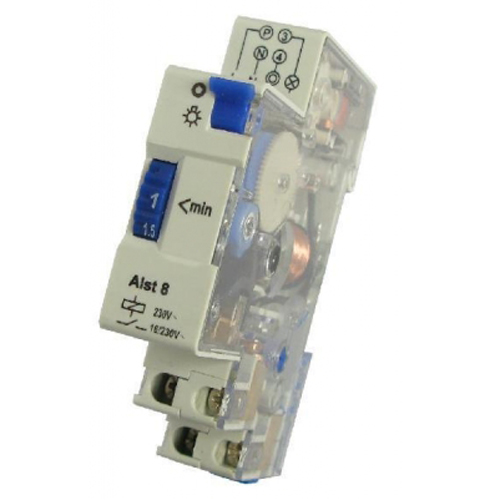

ALST8 7 MINUTES Staircase Time Switch
Item # Alst8
Item # Alst8
Item Description and Details:
• Full timing range: 7 MINUTES
• Contact capacity: AC230V 16A
• Coil voltage: 110, 230VAC
• Contact resistance: ≤50mΩ
• Insulation resistance: ≥100mΩ
• Minimum setting unit: 0.5 minutes
• Set up times: 1M, 1.5M, 2M, 2.5M, 3M, 3.5M,
4M, 4.5M, 5M, 5.5M,6M, 6.6M, 7M
• Operating temperature: -40°c~+55°c
Height × Width × Depth:
• Product Size: 83.5 × 18 × 65.5 mm
Product details
Order info:
• Small order is acceptable, shipped out from our warehouse within 3 DAYS.
• Payment: Paypal, Western Union, Wire Transfer (T/T), MoneyGram is available.
• OEM (printing your brand or logo) or customised voltage is acceptable.
