Item # SYN180a
• Full timing range: 24 hours
• Contact capacity: AC230V 16A
• Coil voltage: 110V, 230VAC
• Contact resistance: ≤50mΩ
• Insulation resistance: ≥100mΩ
• Minimum setting unit: 15 minutes
• Set up times: 96 ON/OFF per day
• Power reserve: 70 hours
• Operating temperature: -40°c~+55°c
Height × Width × Depth:
• Product Size: 90 × 18 × 65.5 mm

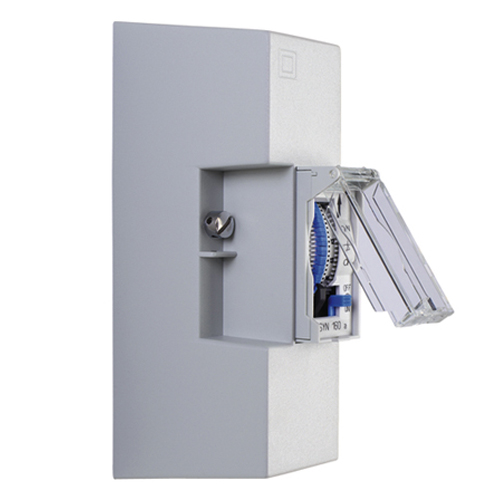

SUL180a 24hrs DIN RAL analogue time switch is suit for water heater, water dispensers, street lamp, staircase lamp, Advertising lamp boxes, Breed aquatics, Irrigate, Office power auto control, in anywhere need time control in civilian, home or industrial, etc.
It can be set 8 programs to control ON and OFF of electric appliance in 24 hours or setting 96 programs in one week. It can be programmed to avoid the peak of power, and it can distribute power in time limit to saving energy. This timer is a kinds of module for DIN guide rail, it is easy to installation in distribute box, and its so compact size with pretty form. Its time base component is adopt synch pulse motor and it is strong anti-jamming with performance stabilization.
Specifications:
• Optional: SUL 180a with battery, storage battery is not less than 70 hour.
SYN 160a without battery
• Output: 16amp, SPDT @ 250Vac, volt-free output.
• Installation: 35 mm DIN rail or installed in distrubution board.
Order info:
• Small order is acceptable, shipped out from our warehouse within 3 DAYS.
• Payment: Paypal, Western Union, Wire Transfer (T/T), MoneyGram is available.
• OEM (printing your brand or logo) or customised voltage is acceptable.
