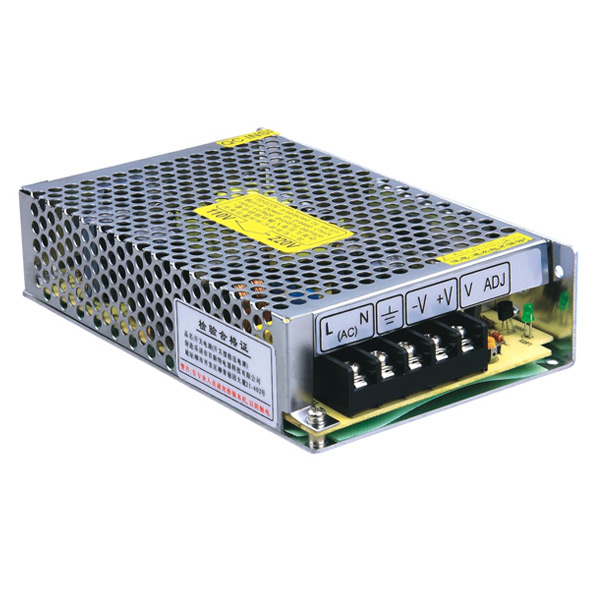

Model

S-75-12

S-75-15

S-75-24

Output

DC voltage

12V

15V

24V

Voltage tolerance

±1%

±1%

±1%

Rated current

6.3A

5A

3.1A

Current range

0~5A

0~4A

0~1.8A

Rated power

75W

75W

75W

Ripple&noise

100mvp-p

100mvp-p

120mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

Input

Voltage range

90~132VAC/180~264VAC(selected by switch),255~373VDC

frequency

47~63HZ

AC current

1.4A/115VAC,0.7A/230VAC

efficiency

79%

80%

82%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 3.5mA/240VAC

Protection

overload

Rated output power105%~135%  start over load protection

protection type:part layer type current limit, auto-recovery after fault condition is removed

-----

-----

-----

Environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

EN55022,CLASSA

Others

Dimension

159*97*38mm (L*W*H)

Weight/packing

0.5kg/45pcs/23.5kg/0.041m³/1.45CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
