You are here: Home » Products » Switching Power Supply » Mini Power Supply
  • 25W mini size Single output Power Supply

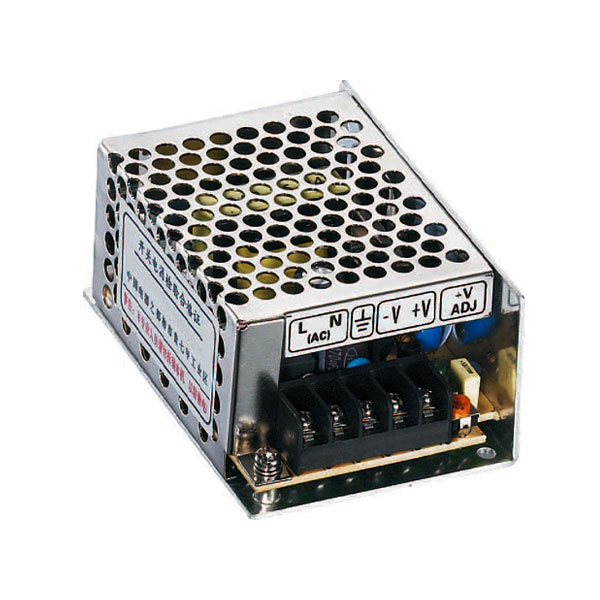

25W mini size Single output Power Supply
Item # MS-25W

Item Features:
• Input:110~
220V AC full range

• Output: DC 5V,12V,15,24V
• Protections: Short circuit/Over load

• Cooling by free air convection
• 100% full load burn-in test



Length x Width x Height:
• Product size
: 84
*58*38mm (L*W*H)

Click here to download instruction

Product details


Specification

MS-25-5

MS-25-12

MS-25-15

MS-25-24

DC output

5V  5A

12V  2A

15V   1.7A

24V  1.1A

Wave and noise

50mVp-p

50mVp-p

75mVp-p

75mVp-p

Inlet stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±1%

±0.5%

±0.5%

±0.5%

Efficiency

72%

76%

77%

80%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

AC input voltage range

85-264VAC  47-63Hz    120-370VDC

AC Inrush current

Cold-start current  15A/115V  30A/230V

OverLoad protection

105%-150% hiccup mode,auto-recovery

Over-Voltage protection

115%-135% rated output voltage

Setup,rise,hold up time

300ms,50ms,80ms at full load and 230VAC

Withstand voltage

I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute

Isolation resistanc

I/P-O/P   IP/FG   OP-FG:500VDC/100M

Working temperature

-10ºC—+50ºC

Safety Standards

Design refer to GB4943,UL60950,EN60950

EMC Standards

Design refer to GB9254,EN55022 Class B

Weight

0.15Kg
