You are here: Home » Products » Switching Power Supply » Mini Power Supply
  • 15W mini size Single output Power Supply

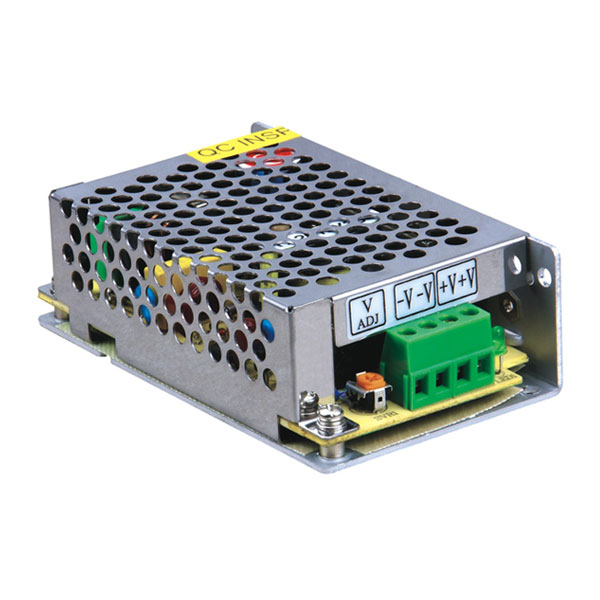

15W mini size Single output Power Supply
Item # MS-15W

Item Features:
• Input:110~
220V AC full range

• Output: DC 5V,12V,15,24V
• Protections: Short circuit/Over load

• Cooling by free air convection
• 100% full load burn-in test



Length x Width x Height:
• Product size
: 100*58*32mm
(L*W*H)

Click here to download instruction

Product details
Specification            MS-15-5     MS-15-12     MS-15-15    MS-15-24
DC output        5V  3A    12V  1.3A    15V   1A    24V  0.7A
Wave and noise    60mVp-p     80mVp-p    100mVp-p   100mVp-p
Inlet stability      ±0.5%      ±0.5%       ±0.5%      ±0.5%
Load stability      ±0.5%      ±0.5%       ±0.5%      ±0.5%
Efficiency        68%         71%         72%       75%
Adjustable range for DC voltage        ±10%      ±10%       ±10%      ±10%
AC input voltage range  85-264VAC  47-63Hz    120-370VDC
AC Inrush current Cold-start current  30A/230V
OverLoad protection          105%-135% hiccup mode,auto-recovery
Over-Voltage protection
Setup,rise,hold up time 200ms,50ms,20ms at full load and 230VAC
Withstand voltage   I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute
Isolation resistanc  I/P-O/P   IP/FG   OP-FG:500VDC/100M
Working temperature -10ºC—+50ºC
Safety Standards Design refer to GB4943,UL60950,EN60950
EMC Standards  Design refer to GB9254,EN55022 Class B
Weight 0.15Kg
