  • 240W Single Output Switching Power Supply

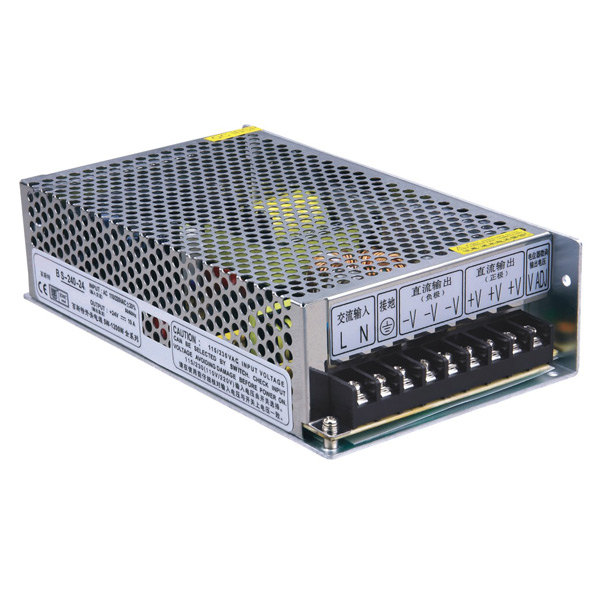

240W Single Output Switching Power Supply
Item # BS-240W

Item Features:
• Input: 110 / 220V AC selected by switch

• Output: DC 5V,7.5V,10V,12V,15V,18V,24V,27V,36V,48V

• Protections: Short circuit/Over load/Over voltage/Over temp.

• Forced air cooling by built-in DC fan

• LED indicator for power on

• Fixed switching frequency at 75KHz



Length x Width x Height:
• Product size
: 199*110*50mm (L*W*H)

Click here to download instruction

Product details


Specification

BS-240-12

BS-240-15

BS-240-24

BS-240-48

DC output

12V  20A

15V    16A

24V  10A

48V   5A

Wave and noise

100mVp-p

100mVp-p

100mVp-p

100mVp-p

Inlet stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

82%

82%

83%

86%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

AC input voltage range

85-132VAC/170-264VAC  47-63Hz

AC Inrush current

Cold-start current  25A/115V  50A/230V

OverLoad protection

105%-150% hiccup mode,auto-recovery

Over-Voltage protection



Setup,rise,hold up time

200ms,50ms,20ms at full load and 230VAC

Withstand voltage

I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute

Isolation resistanc

I/P-O/P   IP/FG   OP-FG:500VDC/100MΩ

Working temperature

-10ºC—+50ºC

Safety Standards

Design refer to GB4943,UL60950,EN60950

EMC Standards

Design refer to GB9254,EN55022 Class B

Weight

0.9Kg
