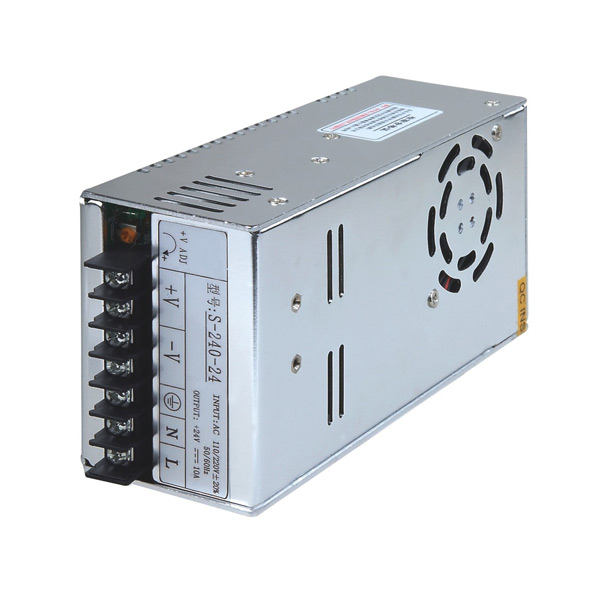

Model

S-240-5

S-240-12

S-240-15

S-240-24

S-240-30

S-240-48

Output

DC voltage

5V

12V

15V

24V

30V

48V

Voltage tolerance

±1%

±1%

±1%

±1%

±1%

±1%

Rated current

40A

18A

15A

10A

8A

5A

Current range

0~40A

0~18A

0~15A

0~10A

0~8A

0~5A

Rated power

200W

216W

225W

240W

240W

240W

Ripple&noise

120mvp-p

150mvp-p

150mvp-p

150mvp-p

150mvp-p

200mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

±10%

±10%

±10%

Input

Voltage range

90~132VAC/180~264VAC(selected by switch), 255~373VDC

frequency

47~63HZ

AC current

5.0A/115VAC, 2.5A/230VAC

efficiency

80%

80%

82%

82%

82%

83%

Inrush current

Cold start current 25A/115VAC, 50A/230VAC

Leakage current

< 3.5mA/240VAC

Protection

overload

Rated output power105%~135%  start over load protection

protection type: rated current limit,  auto-recovery after fault condition is removed

Over voltage

15.6~17.8V

18.6~20.8V

30.6~33.2V

33.2~35.6V

42.6~44.2V

54.8~56.6V

Protection type: hiccup mode, auto-recovery after fault condition is removed

Over temperature

inner temperature≥85°C start over temperature protection

Protection mode: cutoff output, auto-recovery after temperature become normal

Environment

Working temp,humidity

-10°C~+60°C, 20%~90%RH

Storagetemp,humidity

-20°C~+85°C, 10%~95%RH non-condensing

Withstand vibration

10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes

Safety

Withstand voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

EN55022，CLASSA

Others

Dimension

190*93*65mm (L*W*H)

Weight/packing

0.956kg/24pcs/23kg/0.049 m³/1.72CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
