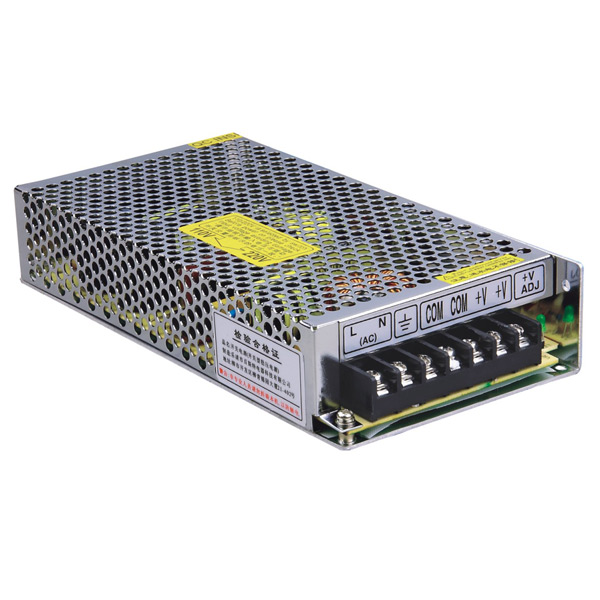

Model

S-145-5

S-145-12

S-145-15

S-145-24

S-145-36

S-145-48

Output

DC voltage

5V

12V

15V

24V

36V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

25A

12A

9.7A

6A

4A

3A

Current range

0~25A

0~12A

0~9.7A

0~6A

0~4A

0~3A

Rated power

125W

144W

145.5W

144W

144W

144W

Ripple&noise

100mvp-p

150mvp-p

150mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

±10%

Input

Voltage range

90~132VAC/180~264VAC(selected by switch), 255~373VDC

frequency

47~63HZ

AC current

3.2A/115VAC, 1.6A/230VAC

efficiency

78%

80%

80%

82%

82%

83%

Inrush current

Cold start current 18A/115VAC, 36A/230VAC

Leakage current

< 3.5mA/240VAC

Protection

overload

Rated output power115%~150%  start over load protection

protection type:cutoff output, recovery after restart power

Over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

33.2~35.6V

54.8~56.6V

protection type:hiccup mode, auto-recovery after fault condition is removed

-----

-----

-----

Environment

Working temp,humidity

-10°C~+60°C, 20%~90%RH

Storagetemp,humidity

-20°C~+85°C, 10%~95%RH non-condensing

Withstand vibration

10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes

Safety

Withstand voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

EN55022,CLASSA

Others

Dimension

199*98*38mm (L*W*H)

Weight/packing

0.7kg/30pcs/22kg/0.034 m³/1.2CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
