  • PH/mV/Temperature Meter(Backlit display)

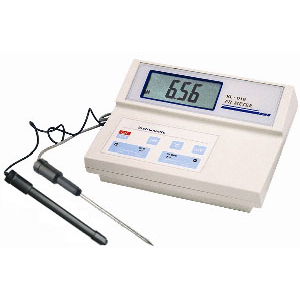

PH/mV/Temperature Meter(Backlit display)
Item # PH-016

Item Description and Details:

• Big LCD display

• 3 IN 1 (PH/mV/ºC  test)

• High Accuracy

• ATC (Automatic Temperature Compensation)

• Backlight display



Height × Width × Depth:

• Product Size: 240 × 185 × 100 mm

Click here to download instruction

Product details

PH-016 is an accurate electrochemical apparatus which is used to measure the acidity and basicity, electrode potential and the temperature of solutions. It is an accurate secondary instrument with Backlit display. It can be used with various ion selective electrodes to measure cell potential of electrodes in solution. The negative logarithm of the ionic activity in solution can be read directly. The instrument can also be used as an accurate pH meter and an accurate mV meter with high input impedance According to Nernst equation combined with micro computer technology, the apparatus carries out real timely monitoring and data treatment. Then the acidity result can be measured.
The handy key board for the selection of the various functions. The possibility of automatically correcting errors in measurement due to temperature and the extreme simplicity of regulation all serve to permit a rapid and reliable execution of calibration and measurement.
The display on the front panel reveals the temperature. PH or mV reading taken by the instrument. The instrument comes supplied with a combined PH electrode and a probe for the measurement and compensation of the temperature.



Model

PH-016

Measuring range

PH

0.00~14.00PH

mV

0~±1999mV

Temp

0~100°C

Accuracy

PH

±0.01pH

mV

±0.1℅F·S±1digit

Temp

±0.4°C

Resolution

PH

0.01pH

mV

1mV

Temp

0.1℃

Environment

Temperature:0°C~50°C Humidity:≤95℅

Display

4-digital LCD

Power Supply

AC110VorAC220V50/60Hz

Input Impedance

1012 Ohm

Dimensions

240mm×185mm×100mm

Weight

660g
