  • HTC601 Overcurrent Intelligent Protectors

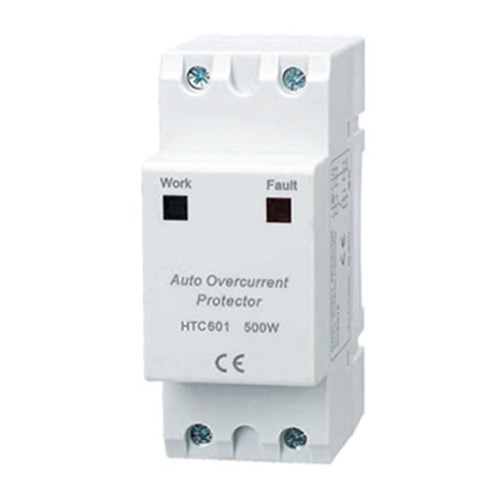

HTC601 Overcurrent Intelligent Protectors
Item # HTC601

Item Description and Details:

• Perfect outlook,2 module design
• Customizable current & breaking time
• Red/green indicator
• Prompty and exactly overload protection by digital CPU
• Switching ON/OFF automatically
• Energ-saving and safe
• Easy for intallation and connection

Height × Width × Depth:

• Product Size: 86.5 × 36 × 65.5 mm

Click here to download instruction

Product details

The Automatic Power Consumption Limiting Device HTC601, is effective managed for temporary accommodation,contruction sites,mine,factory and school dormitories etc.which need to limit the power energy of the individual unit.it will be switching off power automatically when the load of electrical appliances over their normal working current either being malignant overload caused.if the electrical unit back to regular working state.this device will rework after 60s automatically.in case of the electrical unit still be cut off conditions.it will effective avoid electrical fire happend that owing to oversue electirc energy caused.therefore,it will ensure safety,reduce maintenance tiem,save cost,it will be a good expert of the electrical unit application.



Techanical Data:

Operating Volgate: 110V, 220Vac

Frequency: 50/60Hz

Power range: from 100W to 5000W

Rating range: from 0.5A to 30A

Overload switching time: 1.2 times/3 S, 2 times/0.5 S, over 3 times/0.01S

Working temperature: -10~40 degree.
