Item # TM-615
Item Description and Details:

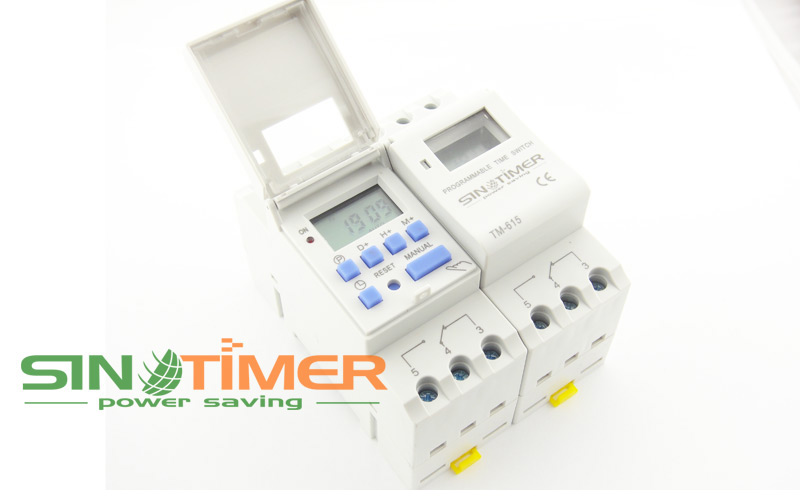

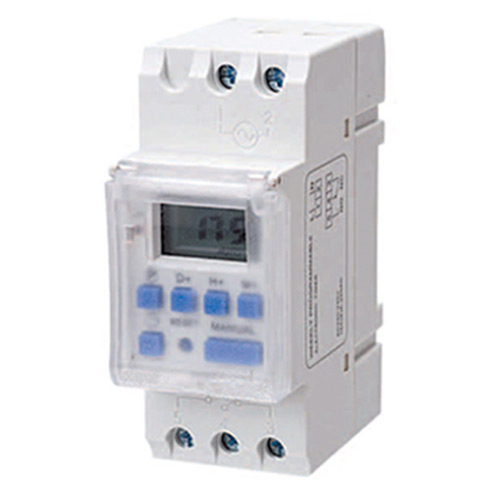

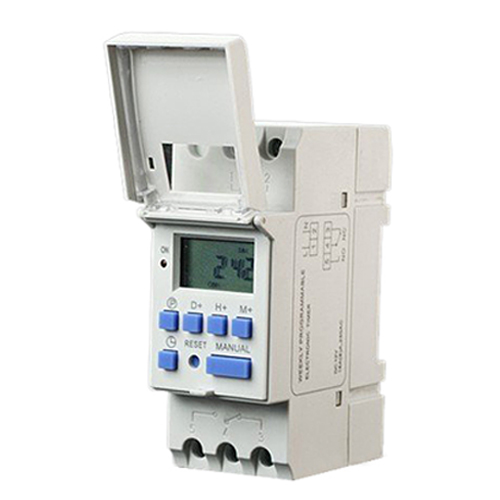

• DIN RAIL time switch for 7 days-24 hours
• Advanced pre-setting one week before
• 17 ON/OFF programs for daily and weekly
• One channel, volt free output
• Accurate-to-the-minute control

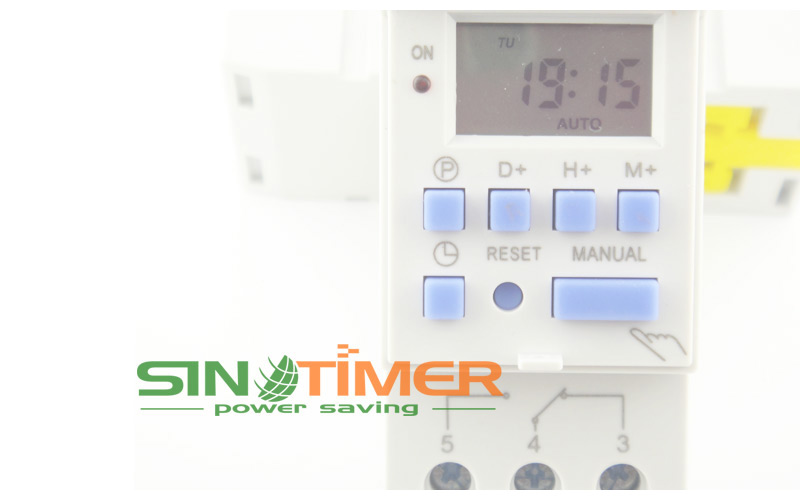

• LED power indicator, high contrast LCD display
• Reset function and manual override
• Battery back up for power failiure
Height × Width × Depth:
• Product Size: 86.5 × 36 × 65.5 mm

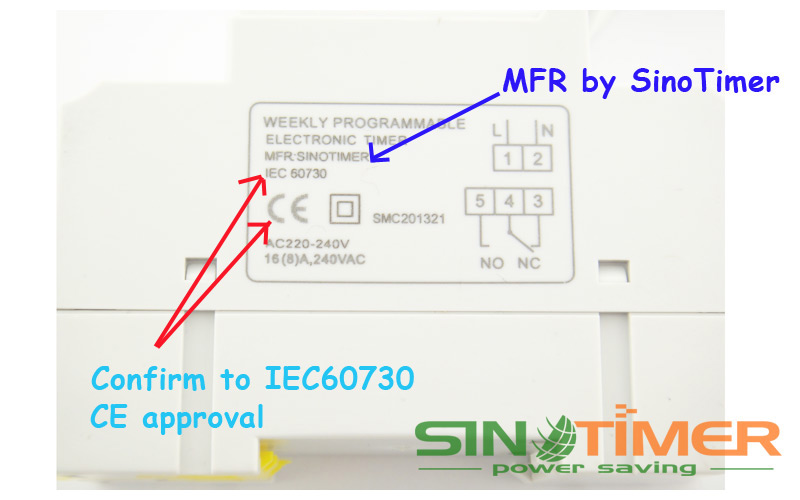

TM615 DIN rail 7 days 24hrs Programmable switch timer can automatically switch on and switch off various kinds of electric equipment at a preset time. It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. The digital timer switch is within rechargeable battery, in 1.2V/40Ma, to save the programs for power failiure. it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set, confirms to IEC 60367 and CE certificated.
Specifications:
• Optional A: TM615-1 for 127 Vac and TM615-2 for 230 Vac,
TM615-3 for 24 Vdc/ac and TM615-4 for 12 Vdc/ac.
• Optional B: Opaque or Transparent flap (cover or lip).
• Output: 16amp, SPDT @ 250Vac, volt-free output.
• Installation: 35 mm DIN rail or installed in distrubution board.
Order info:
• Small order is acceptable, shipped out from our warehouse within 3 DAYS.
• Payment: Paypal, Western Union, Wire Transfer (T/T), MoneyGram is available.
• OEM (printing your brand or logo) or customised voltage (6Vdc, 48Vdc, 277Vac) is acceptable.
