Time Switches - Digital Timers - 30 Amp 24hrs Programmable Digital Timer

You are here: Home » Products » Time Switches » Digital Timers

30 Amp 24hrs Programmable Digital Timer
Item # TM616

Item Description and Details:

• DIN rail BIG LCD digital time switch for 7 days-24 hours

• Advanced pre-setting one week before

• 17 ON/OFF programs for daily and weekly

• One channel, voltage output

• Accurate-to-the-minute control

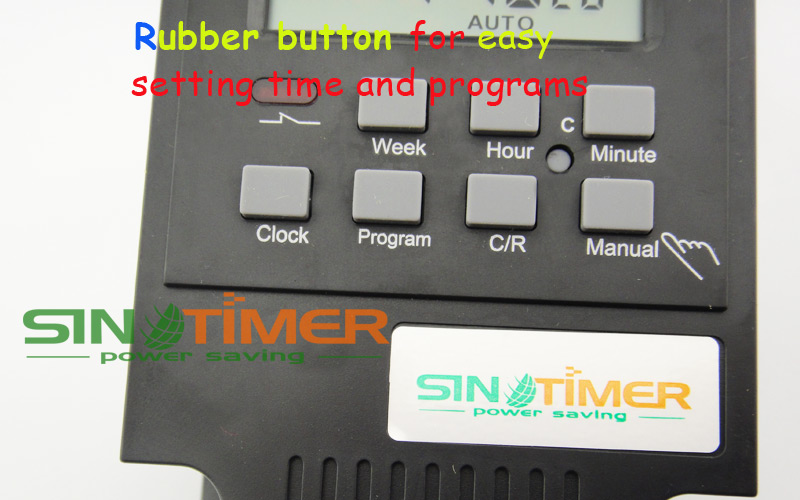

• Rubber button for easy programming

• Reset function and manual override

• Battery back up for power failiure

Height × Width × Depth:

• Product Size: 120 × 74 × 52 mm

Click here to download instruction

Product details

TM616 30 AMP 7 days 24hrs Programmable switch timer can automatically switch on and switch off various kinds of electric equipment at a preset time. It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. The digital timer switch is within rechargeable battery, in 1.2V/40Ma, to save the programs for power failiure. it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set, confirms to IEC 60367 and CE certificated.

Specifications:

• Optional A: TM616-1 for 127 Vac and TM616-2 for 230 Vac,

• Optional B: Black or White Shell

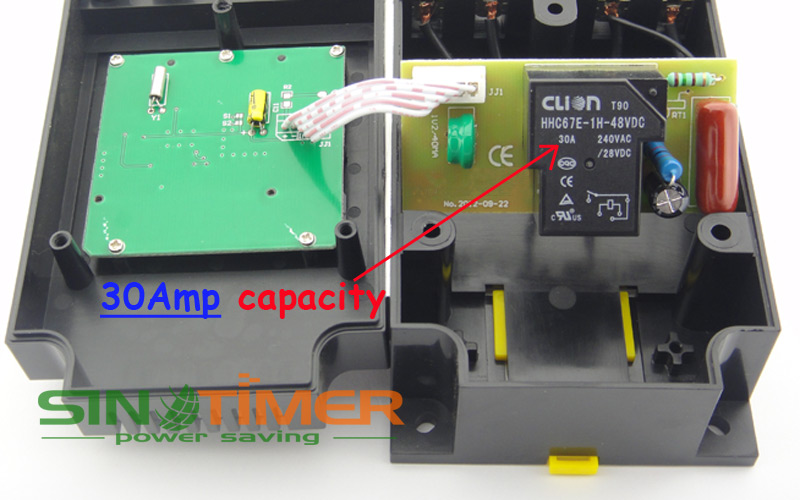

• Output: 30 amp, SPDT @ 250Vac, voltage output.

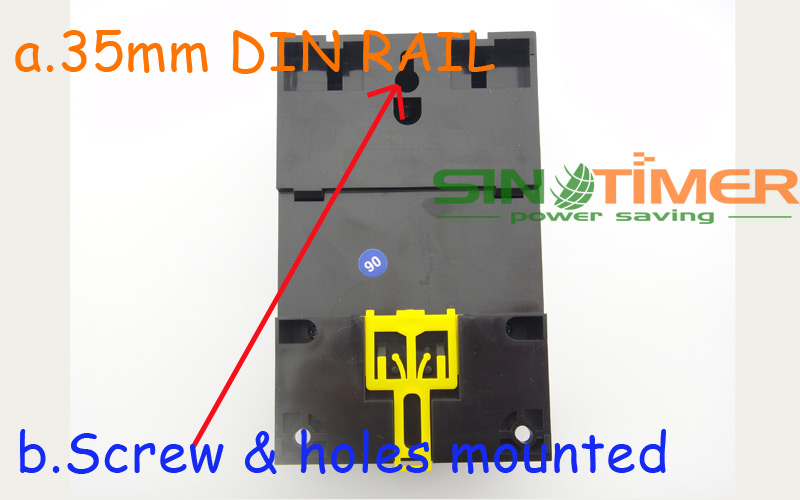

• Installation: 35 mm DIN rail or panel screw mounting

Order info:

• Small order is acceptable, shipped out from our warehouse within 3 DAYS.

• Payment: Paypal, Western Union, Wire Transfer (T/T), MoneyGram is available.

• OEM (printing your brand or logo) or customised voltage is acceptable.

Similar products

TM618 7Days Digital Time Switch

TM6331 Mulitipurpose Digital Timer

DC12V Programmable Digital Timer Module

72×72mm Panel Mounted Weekly Timer
