  • 20W Din Rail Power Supply

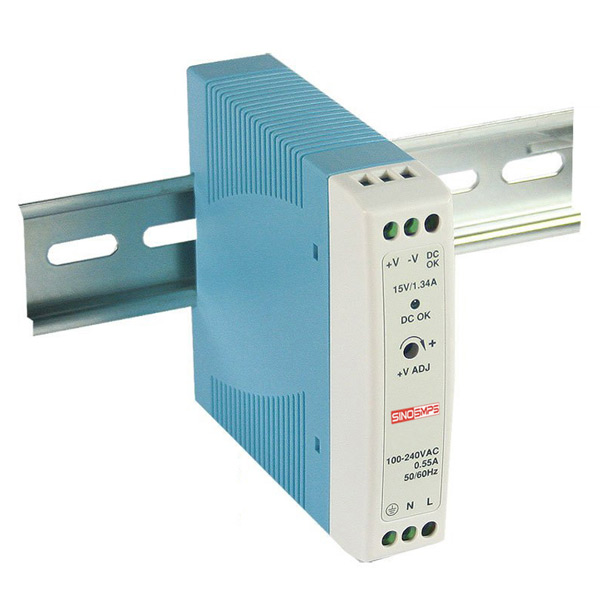

20W Din Rail Power Supply
Item # MDR-20

Item Features:
·Input:110~ 220VAC Full range
·Output: 5V,12V,15V,24V
·Protections: Short circuit/Over load/Over voltage
·Cooling by free air convection
·Can be installed on DIN rail TS-35/7.5 or 15
·Built in DC OK active signal
·LED indicator for power on
·No load power consumption<0.75W
·100% full load burn-in test

Length x Width x Height:
·Dimension: 22.5*90*100mm (L*W*H)

Click here to download instruction

Product details



MODEL MDR-20-5 MDR-20-12 MDR-20-15 MDR-20-24
OUTPUT DC VOLTAGE 5V 12V 15V 24V
RATED CURRENT 3A 1.67A 1.34A 1A
CURRENT RANGE 0 ~ 3A 0 ~ 1.67A 0 ~ 1.34A 0 ~ 1A
RATED POWER 20W 20W 20W 24W
RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC     1000ms, 30ms/115VAC at full load
HOLD TIME(Typ.) 50ms/230VAC     20ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC       120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 76% 80% 81% 84%
AC CURRENT 0.55A/115VAC 0.35A/230VAC
INRUSH CURRENT(max.) COLD START 20A/115VAC 40A/230VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type: Constant current limiting,recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V
Protection type: Shut down o/p voltage,re-power on to recover
FUNCTION DC OK ACTIVE SIGNAL (max.) 3.75 ~ 6V / 50mA 9 ~ 13.5V / 40mA 11.5 ~ 16.5V / 40mA 18 ~ 27V / 20mA
ENVIRONMENT WORKING TEMP. -20 ~ +70ºC (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85ºC, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ºC (0 ~ 50ºC)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note.4) SAFETY STANDARDS Design refer to UL508, TUV EN60950-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT Compliance to EN61000-3-2,-3
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A
OTHERS MTBF 236.9K hrs min. MIL-HDBK-217F (25ºC)
DIMENSION 22.5*90*100mm (W*H*D)
PACKING 0.19Kg; 72pcs/14.7Kg/0.91CUFT
NOTE 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5.Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
