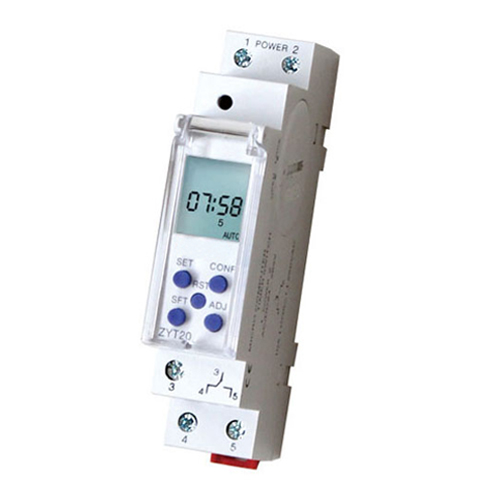

18mm DIN Rail Programmable Timer Switch
Item # TM-ZYT20A

Item Description and Details:

• 18mm DIN rail time switch for 7 days-24 hours

• Advanced pre-setting one week before

• 20 ON/OFF programs for daily and weekly

• One channel, volt free output

• Accurate-to-the-minute control

• LED power ON/OFF indicator, high contrast LCD display

• Reset function and manual override

• Replaceable battery 3V CR2032 back up for power failiure

Height × Width × Depth:

• Product Size: 85 × 18 × 67 mm

Click here to download instruction

Product details

TM-ZYT20A 18mm Width DIN rail 7 days 24hrs Programmable switch timer can automatically switch on and switch off various kinds of electric equipment at a preset time before a week and can work cyclically per week or day (from one mnute to 168hours) according to the preset programs. It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. The digital timer switch is within replaceable battery 3V CR2032 back up for power failiure. it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set, confirms to IEC 60367 and CE certificated.

Specifications:

• Universal Input Voltage: 230Vac or 110Vac 50/60Hz.

• Output: 10amp, SPDT @ 250Vac, volt-free output.

• Installation: 35 mm DIN rail or installed in distrubution board.

Order info:

• Small order is acceptable, shipped out from our warehouse within 3 DAYS.

• Payment: Paypal, Western Union, Wire Transfer (T/T), MoneyGram is available.

• OEM (printing your brand or logo) or customised voltage is acceptable.
